Arduino Laser Tag Update #4

Posted on May 11, 2015 by andersonli

PCB Etching and Soldering Components

After working on this project for the past couple of days, I was finally able to fit everything neatly onto a printed circuit board. The breadboard is great for testing an idea, but the wires can get a bit messy as the project becomes more complex. I etched the PCB boards using the tonner method for the mask and ferric chloride as the etchant. With that said, there are a couple of changes I made to the wiring itself. Most of these changes were made to allow components to fit better with the laser tag gun. The process of making these boards begins with a breadboard diagram.

Next, a wiring diagram was made from the connections on the breadboard. It makes the wiring connections easier to read.

Finally the PCB board components were laid out. I used a ground fill to save as much etching as possible.

The final result.

Arduino Laser Tag Update #3

Posted on January 22, 2015 by andersonli

Hardware Testing and Refinement

One of the issues I encountered with my proposed setup in Update #1 is that the LED segments will periodically dim. This was because I only used one resistor to power all 7 segments (8 including the dot) in parallel. This would work if all LEDs in the display were manufactured the same way. However, it’s more likely that some LEDs draws more current than the others causing some segments to become slightly brighter while the others dim. The better way to connect the LEDs is to have a resistor after each one. I used a 2K Ω resistor after each segment so that the current flowing through each LED remains low.

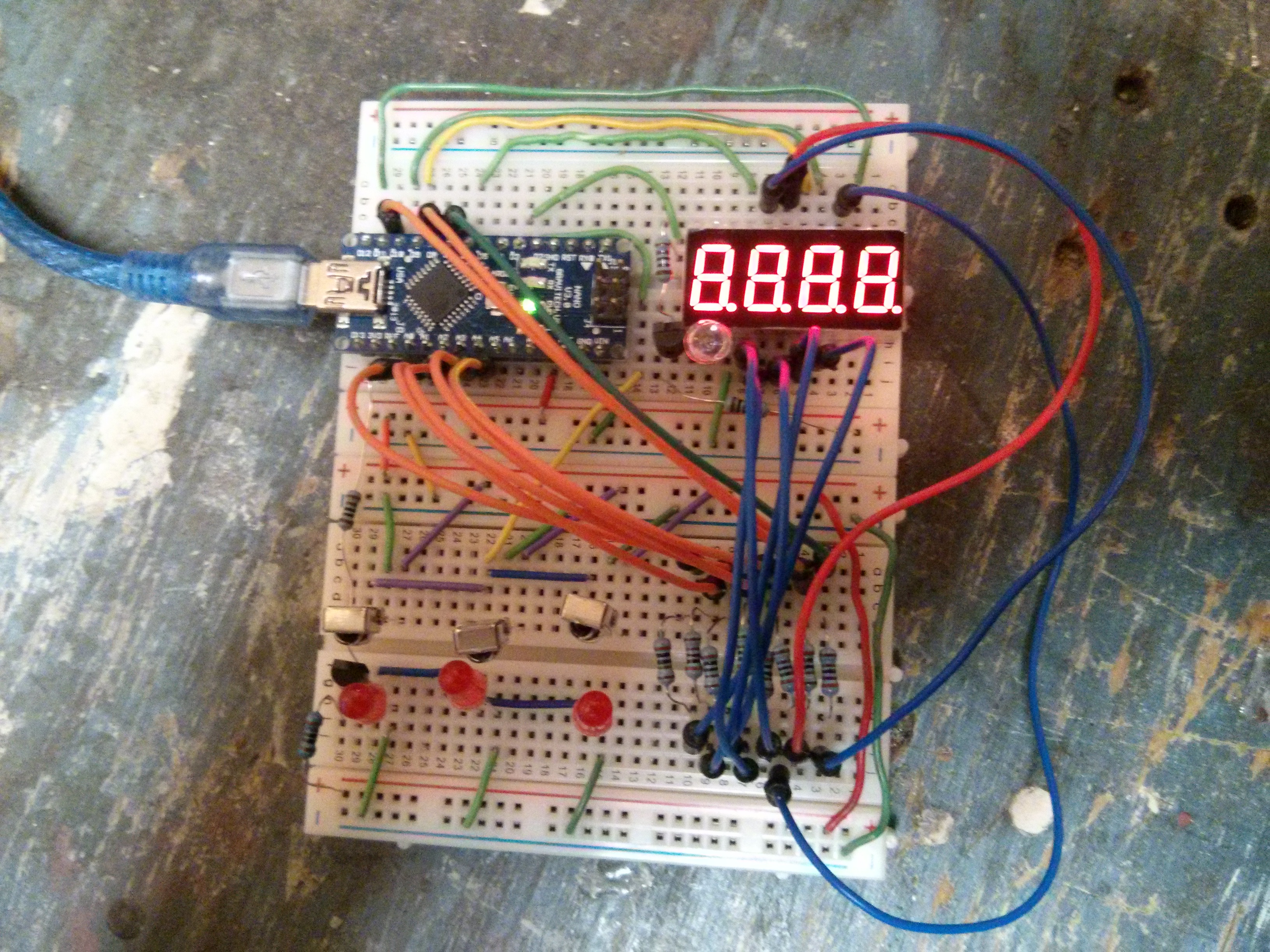

This hardware configuration worked out a lot better for me. All the LEDs remained at a constant brightness. I also managed to get the IR Sensor an the IR LED working at the same time. My test code for this setup is shown below.

#include &lt;IRremote.h&gt;

#define RECV_PIN 2

#define DIGIT_1 12
#define DIGIT_2 10
#define DIGIT_3 9
#define DIGIT_4 6

#define SEG_A 7
#define SEG_B 11
#define SEG_C 15
#define SEG_D 17
#define SEG_E 18
#define SEG_F 8
#define SEG_G 14
#define SEG_DOT 16

IRrecv irrecv(RECV_PIN);
IRsend irsend;

decode_results results;

int x = 1;

void setup()
{
  irrecv.enableIRIn(); // Start the receiver

  Serial.begin(9600);

  pinMode(13, OUTPUT);

  pinMode(SEG_A, OUTPUT);
  pinMode(SEG_B, OUTPUT);
  pinMode(SEG_C, OUTPUT);
  pinMode(SEG_D, OUTPUT);
  pinMode(SEG_E, OUTPUT);
  pinMode(SEG_F, OUTPUT);
  pinMode(SEG_G, OUTPUT);
  pinMode(SEG_DOT, OUTPUT);

  pinMode(DIGIT_1, OUTPUT);
  pinMode(DIGIT_2, OUTPUT);
  pinMode(DIGIT_3, OUTPUT);
  pinMode(DIGIT_4, OUTPUT);

  digitalWrite(SEG_A, LOW);
  digitalWrite(SEG_B, LOW);
  digitalWrite(SEG_C, LOW);
  digitalWrite(SEG_D, LOW);
  digitalWrite(SEG_E, LOW);
  digitalWrite(SEG_F, LOW);
  digitalWrite(SEG_G, LOW);
  digitalWrite(SEG_DOT, LOW);

  delay(250);
}

void loop() {

  digitalWrite(DIGIT_1, HIGH);
  digitalWrite(DIGIT_2, LOW);
  digitalWrite(DIGIT_3, LOW);
  digitalWrite(DIGIT_4, LOW);

  delay(x);

  digitalWrite(DIGIT_1, LOW);
  digitalWrite(DIGIT_2, HIGH);
  digitalWrite(DIGIT_3, LOW);
  digitalWrite(DIGIT_4, LOW);

  delay(x);

  digitalWrite(DIGIT_1, LOW);
  digitalWrite(DIGIT_2, LOW);
  digitalWrite(DIGIT_3, HIGH);
  digitalWrite(DIGIT_4, LOW);

  delay(x);

  digitalWrite(DIGIT_1, LOW);
  digitalWrite(DIGIT_2, LOW);
  digitalWrite(DIGIT_3, LOW);
  digitalWrite(DIGIT_4, HIGH);

  delay(x);

  if (irrecv.decode(&amp;results)) {
    irrecv.resume(); // Receive the next value

    digitalWrite(13, HIGH);

  }else{
    digitalWrite(13, LOW);
  }

  if (Serial.read() != -1) {

    digitalWrite(DIGIT_1, LOW);
    digitalWrite(DIGIT_2, LOW);
    digitalWrite(DIGIT_3, LOW);
    digitalWrite(DIGIT_4, LOW);

    for (int i = 0; i &lt; 3; i++) {
      irsend.sendSony(0xa90, 12); // Sony TV power code
      delay(40);
    }

    irrecv.enableIRIn();
  }

}

Arduino Laser Tag Update #2

Posted on January 2, 2015 by andersonli

Software Flow Chart

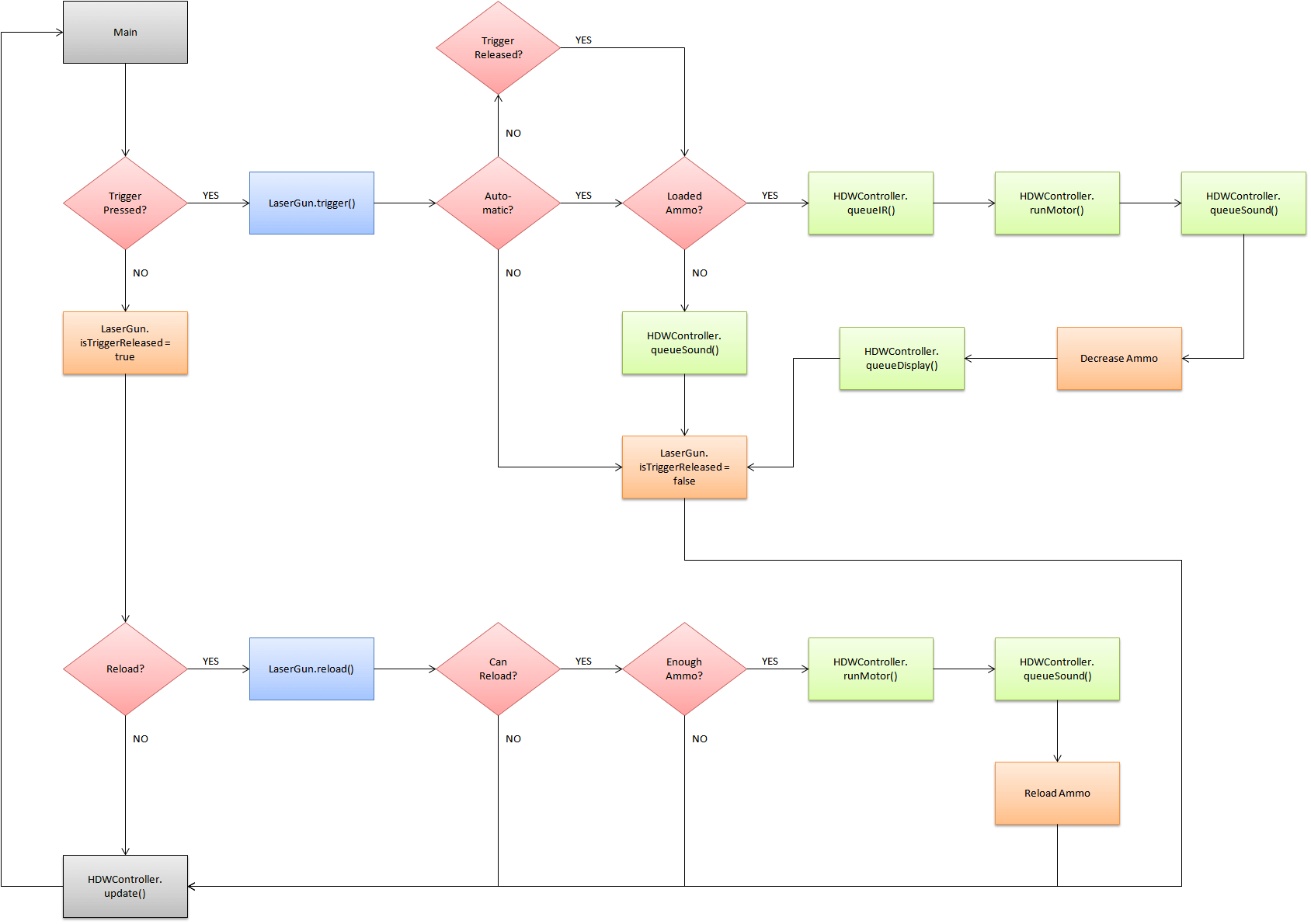

Over the holidays, I started drawing a flow chart diagram for the software portion of the Arduino Laser Tag project. The idea here is to use software polling to detect the trigger and reload buttons instead of using interrupts. I wanted to get around the issue of the interrupts incorrectly detecting the release of the trigger due to the debounce of the buttons. The HDWController will be a new class created to manage all the hardware components (motors, speaker, IR emmitter and sensor). The LaserGun class will be more of an abstract class that will queue certain tasks for the HDWController to perform. You can view the Excel spreadsheet of the flow chart here.

Arduino Laser Tag Update #1

Posted on December 20, 2014 by andersonli

IR Sensor & 7 Segment Display Initial Testing

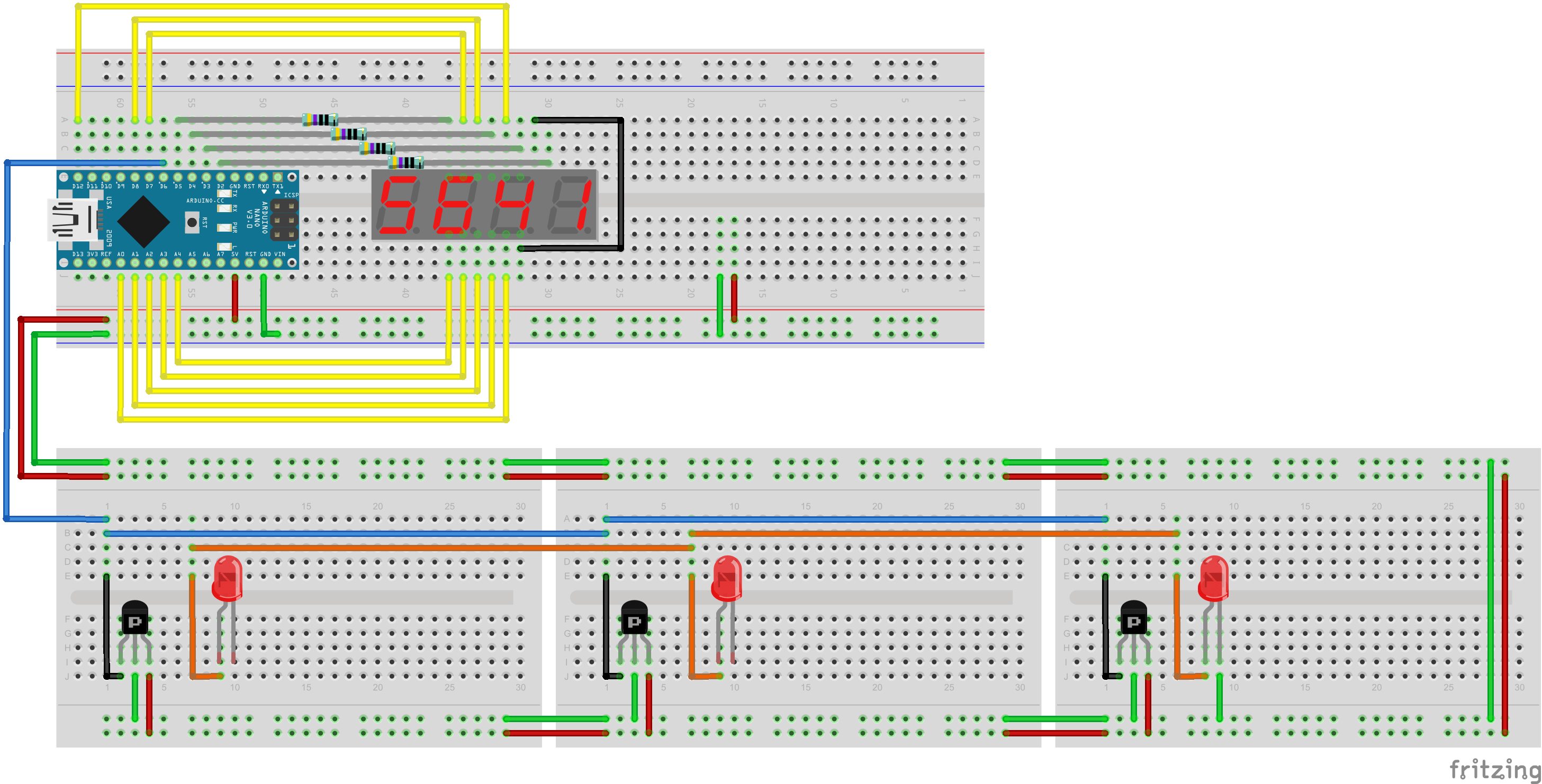

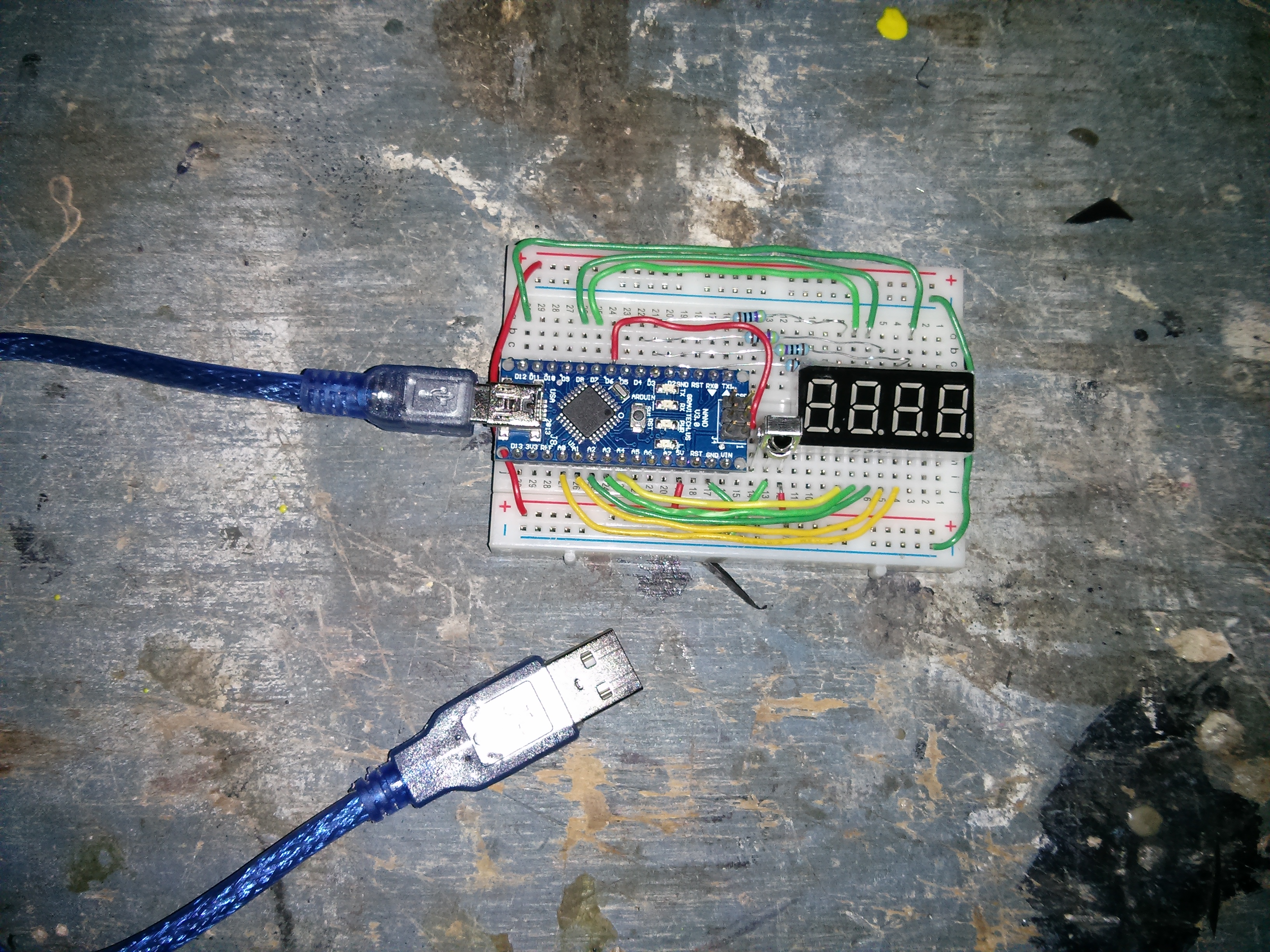

As part of the prototype for laser tag project, I’ve put together a Universal IR Infrared Receiver TL1838 VS1838B working in conjunction with a 4 digit 7 segment display I brought from Aliexpress. I am working towards building a testing platform to something similar to the schematic I’ve drawn below.

We decided to go with a 4 digit display for flexibility in game programming. Mostly likely, the first two digits will be used for health and the last two will be used for ammo. The three IR Sensors on the bottom with their respective LEDs will eventually be attached on to a vest and linked back up to the gun. The IR sensors were tested with the Arduino Nano and the IR detector library from Ken Shirriff’s Blog. It was successful in detecting my remote control from a distance of more than 10 meters away. The testing code for the IR sensor and the 7 segment display is shown below.

#include <IRremote.h>

int RECV_PIN = 6;

IRrecv irrecv(RECV_PIN);

decode_results results;

int x = 1;

void setup()
{
irrecv.enableIRIn(); // Start the receiver

pinMode(13, OUTPUT);

pinMode(12, OUTPUT);
pinMode(8, OUTPUT);
pinMode(7, OUTPUT);
pinMode(14, OUTPUT);
pinMode(15, OUTPUT);
pinMode(16, OUTPUT);
pinMode(17, OUTPUT);
pinMode(18, OUTPUT);

pinMode(2, OUTPUT);
pinMode(3, OUTPUT);
pinMode(4, OUTPUT);
pinMode(5, OUTPUT);

digitalWrite(12, LOW);
digitalWrite(8, LOW);
digitalWrite(7, LOW);
digitalWrite(14, LOW);
digitalWrite(15, LOW);
digitalWrite(16, LOW);
digitalWrite(17, LOW);
digitalWrite(18, LOW);

delay(250);
}

void loop() {

digitalWrite(2, HIGH);
digitalWrite(3, LOW);
digitalWrite(4, LOW);
digitalWrite(5, LOW);

delay(x);

digitalWrite(2, LOW);
digitalWrite(3, HIGH);
digitalWrite(4, LOW);
digitalWrite(5, LOW);

delay(x);

digitalWrite(2, LOW);
digitalWrite(3, LOW);
digitalWrite(4, HIGH);
digitalWrite(5, LOW);

delay(x);

digitalWrite(2, LOW);
digitalWrite(3, LOW);
digitalWrite(4, LOW);
digitalWrite(5, HIGH);

delay(x);

if (irrecv.decode(&amp;results)) {
irrecv.resume(); // Receive the next value

digitalWrite(13, HIGH);

digitalWrite(3, LOW);
digitalWrite(4, HIGH);
digitalWrite(6, HIGH);
}else{
digitalWrite(13, LOW);
}
}

The hardware setup of the 7 segment display was a bit complicated because I couldn’t find the specifications for the pins. I had to test each individual segment myself. If anybody is having trouble figuring out where the common anode is, you can refer to my spread sheet here.

Arduino Laser Tag

Posted on December 19, 2014 by andersonli

For the past few months, my friends and I have been planning to make our own laser tag system that we can play at home. The goal is to make a laser tag system that we can modify and program different game modes. Why are we doing his? We just want to play some laser tag, and learn a couple of things along the way.

How Laser Tag Works

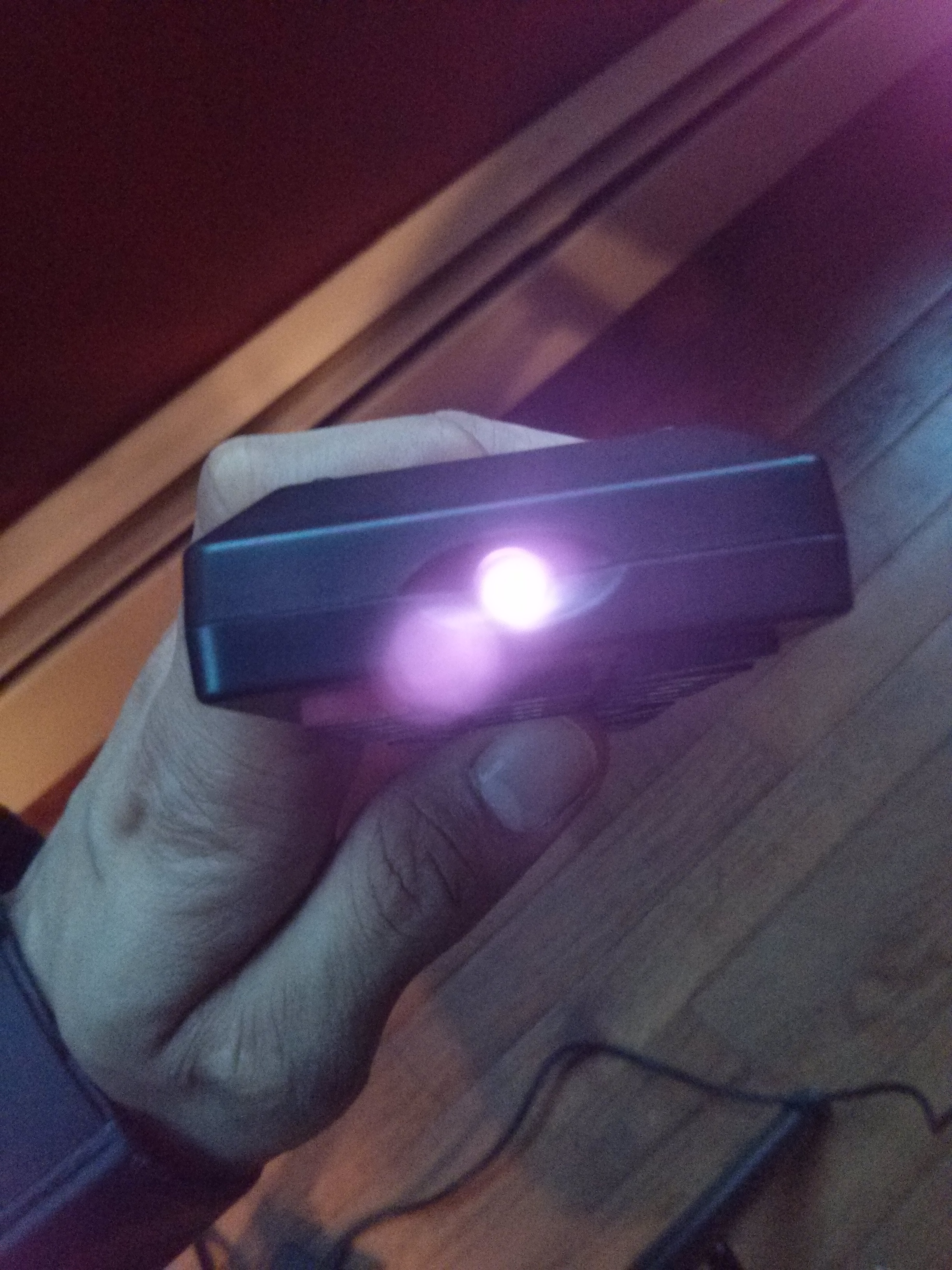

The technology we are dealing with uses infrared (IR) light. It’s been around for a long time, so if you’ve ever used a remote to turn on a TV, then chances are you’ve already seen this technology. This light is located past the lower end of the visible electromagnetic spectrum, so we can’t actually see it. But most digital cameras can still pick it up, so if you take a picture at the right moment, you can see something like this:

Remote control infrared operates at 38 kHz, which is very uncommon in nature. For our Laser tag set-up, we will be using infrared at the same frequency because it is a common standard. The core idea is very simple, have guns that fire off infrared and attach sensors on vests that can detect them. The logic will be handled by a programmable micro-controller. In our case, the Arduino.

Bill of Materials

Since we will be making several sets of guns, we decided to prototype one first, then mass produce the others. Here is our bill of materials for the first laser tag set, just to get us started.

Bill of Materials V1.0

Most of the parts were from China so we expected at least a month of lead time.
